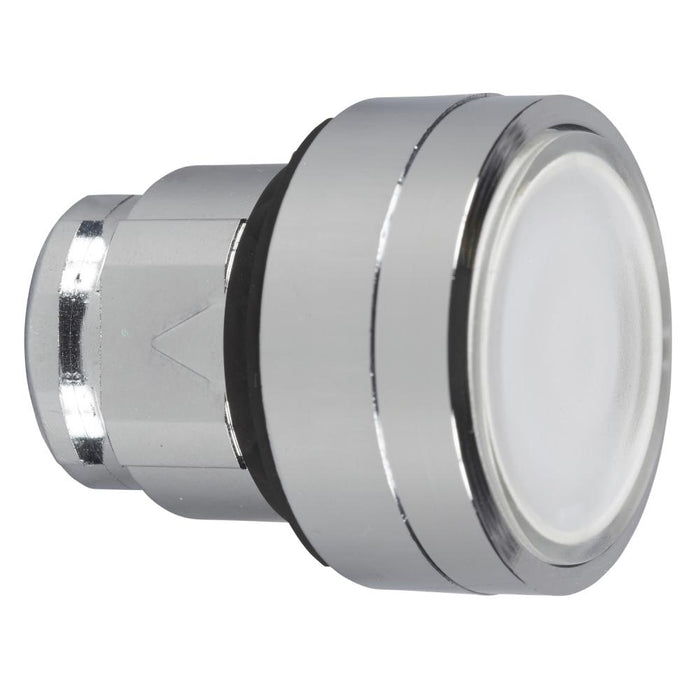

XB4 Pbutton Head Illum 22mm Flush White Push-Push Integ LED
Schneider Electric

XB4 Pbutton Head Illum 22mm Flush White Push-Push Integ LED

Ideal part number SCHZB4BH013 Manufacturer number ZB4BH013 Barcode 3389110122541
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony XB4 Illuminated push button head metal flush white Ø22 push-push integral LED

This Harmony XB4, illuminated flush white button head for integral LED operates with a latched push-push mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear colour and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.

Technical specifications

Hole diameter
22 mm
Colour button
White
Suitable for illumination
yes
Number of command positions
1
Spring-return
no
Labelled
no
Type of button
Flat
Colour front ring
Chrome
Degree of protection
IP66 (Ip, front side: IP66)
Material front ring
Metal
With front ring
yes
Construction type lens
Round
Switching function latching
yes
