XB4 Pbutton Head Non Ill 22mm Red Projecting Push Unmarked
Schneider Electric

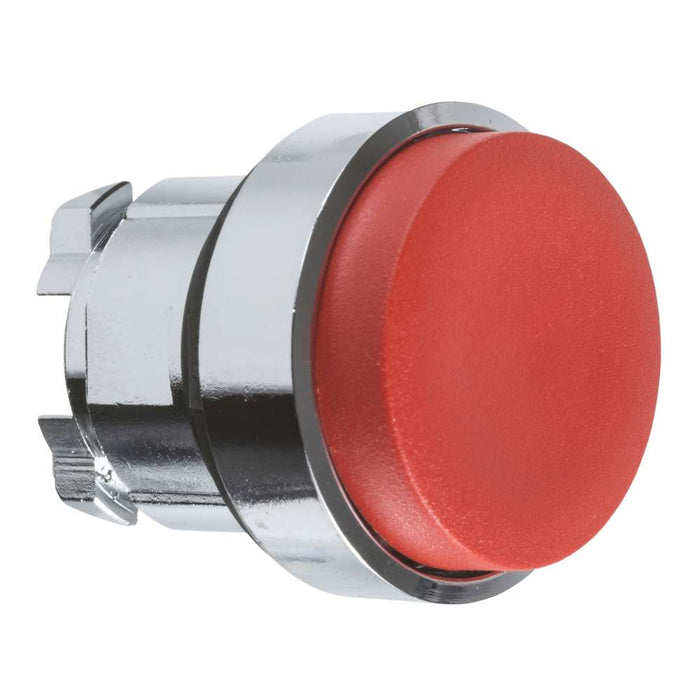

XB4 Pbutton Head Non Ill 22mm Red Projecting Push Unmarked

Ideal part number SCHZB4BH4 Manufacturer number ZB4BH4 Barcode 3389110888584
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Head for non illuminated push button Harmony XB4 red projecting pushbutton Ø22 mm push unmarked

This Harmony XB4, projecting red button head operates with latched push-push mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of pushbuttons and contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to clear colour. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Technical specifications

Hole diameter
22 mm
Colour button
Red
Suitable for illumination
no
Number of command positions
1
Spring-return
no
Labelled
no
Type of button
High
Colour front ring
Chrome
Degree of protection
IP66 (Ip, front side: IP66)
Material front ring
Metal
With front ring
yes
Construction type lens
Round
Switching function latching
yes
