XB4/XB5 Pbutton Head Mushroom 22mm Green Spring Return
Schneider Electric

XB4/XB5 Pbutton Head Mushroom 22mm Green Spring Return

Ideal part number SCHZB4BR316 Manufacturer number ZB4BR316 Barcode 3389110066166
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

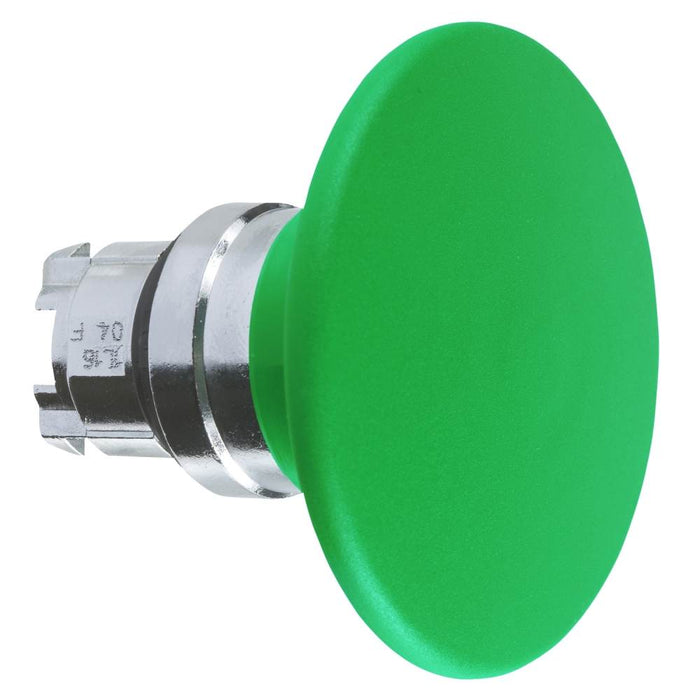

Head for non illuminated push button Harmony XB4 XB5 green Ø 60 mushroom pushbutton Ø22 mm spring return

This Harmony XB4, 60mm mushroom green button head operates with a spring return / impulse mechanism. This 60mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.

Technical specifications

Hole diameter
22 mm
Colour button
Green
Suitable for illumination
no
Unlocking method
None
Spring-return
yes
Diameter cap
60 mm
Suitable for emergency stop
no
Type of button
High
Colour front ring
Chrome
Degree of protection
IP66 (Ip: IP66)
Material front ring
Metal
With front ring
yes
Construction type lens
Round
Switching function latching
no
