XB4 Pbutton Head Projecting 22mm Blue Integral LED Spr Ret
Schneider Electric

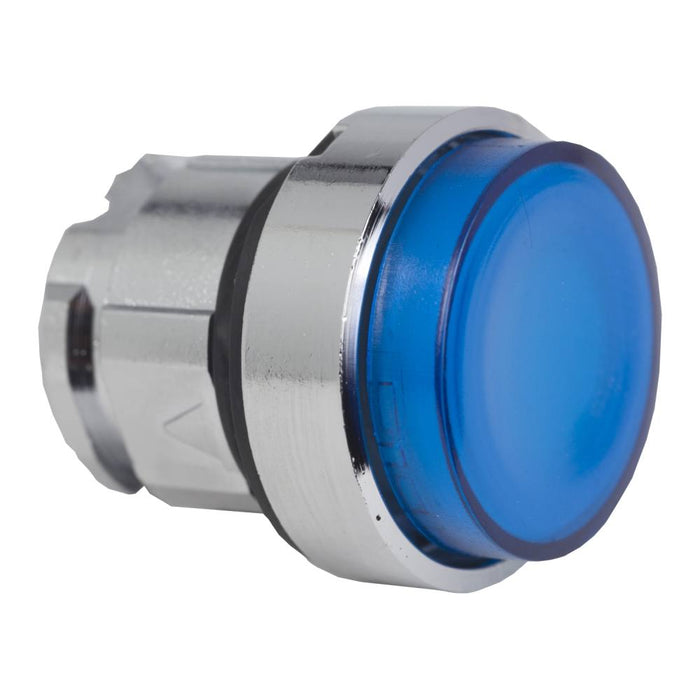

XB4 Pbutton Head Projecting 22mm Blue Integral LED Spr Ret

Ideal part number SCHZB4BW163 Manufacturer number ZB4BW163 Barcode 3389110889888
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Head for illuminated push button Harmony XB4 blue projecting pushbutton Ø22 mm spring return integral LED

This Harmony XB4, plain lens illuminated projecting blue button head operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colour and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.

Technical specifications

Hole diameter
22.5 mm
Colour button
Blue
Suitable for illumination
yes
Number of command positions
1
Spring-return
yes
Labelled
no
Type of button
High
Colour front ring
Chrome
Degree of protection
IP66 (Ip, front side: IP66)
Material front ring
Metal
With front ring
yes
Construction type lens
Round
Switching function latching
no
