XB4 Pbutton Head Mushroom Illum 22mm Blue Int LED Spr Ret
Schneider Electric

XB4 Pbutton Head Mushroom Illum 22mm Blue Int LED Spr Ret

Ideal part number SCHZB4BW463 Manufacturer number ZB4BW463 Barcode 3389110666519
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

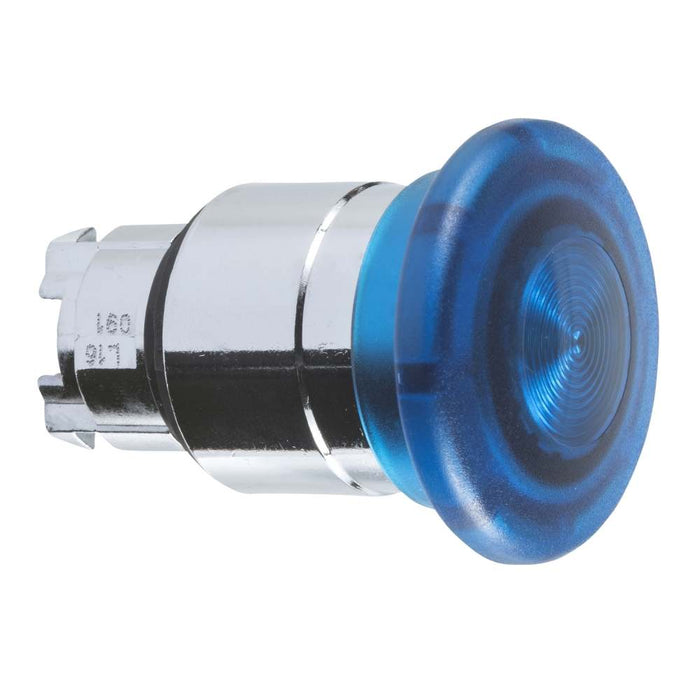

Harmony XB4 Illuminated mushroom push button head Ø40 metal blue Ø22 spring return integral LED

This Harmony XB4, illuminated 40mm mushroom blue button head operates with a spring return / impulse mechanism. This illuminated 40mm mushroom shape push button head for integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.

Technical specifications

Hole diameter
22 mm
Colour button
Blue
Suitable for illumination
yes
Number of command positions
1
Spring-return
yes
Labelled
no
Type of button
Other
Colour front ring
Chrome
Degree of protection
IP66 (Ip, front side: IP66)
Material front ring
Metal
With front ring
yes
Construction type lens
Round
Switching function latching
no
