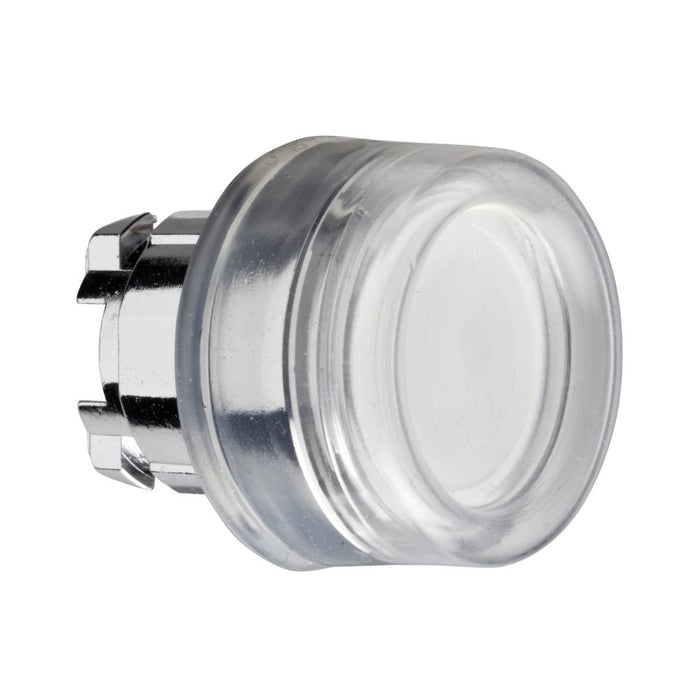

XB4 Pbutton Head Ill Flush 22mm White Spr Ret Plain Clr Boot
Schneider Electric

XB4 Pbutton Head Ill Flush 22mm White Spr Ret Plain Clr Boot

Ideal part number SCHZB4BW513 Manufacturer number ZB4BW513 Barcode 3389110892789
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony XB4 Illuminated push button head metal flush white Ø22 spring return plain lens integral LED clear boot

This Harmony XB4, plain lens illuminated flush white button head with clear boot operates with a spring return / impulse mechanism. This button head with clear boot provides an ergonomic interface for controlling your machines and a simple solution to prevent dirt and contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colours. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.

Technical specifications

Hole diameter
22 mm
Colour button
White
Suitable for illumination
yes
Number of command positions
1
Spring-return
yes
Labelled
no
Type of button
Flat
Colour front ring
Chrome
Degree of protection
IP66 (Ip, front side: IP66)
Material front ring
Metal
With front ring
yes
Construction type lens
Round
Switching function latching
no
