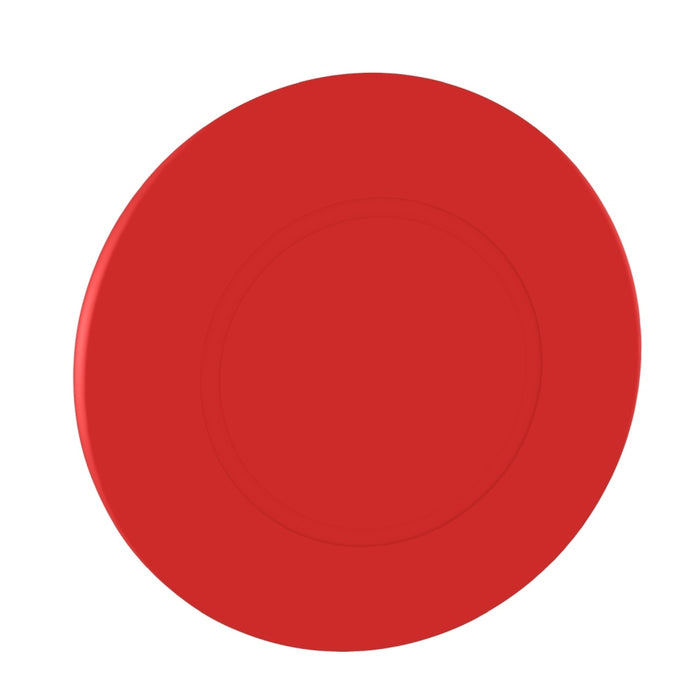

XB4 Emerg Stop Head Switching Off Red 22mm Trigger Latch P/P
Schneider Electric

XB4 Emerg Stop Head Switching Off Red 22mm Trigger Latch P/P

Ideal part number SCHZB4BX84 Manufacturer number ZB4BX84 Barcode 3389119048064
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony XB4 Emergency stop head switching off metal red mushroom Ø60 Ø22 trigger latching push-pull

This Harmony XB4, emergency stop / shutdown 60mm mushroom head monolithic red push button operates with a latched push-pull mechanism. This emergency stop / shutdown button head also called EMS (Emergency Machine Stop) and EMO (Emergency Off) provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off pushbuttons. It is clearly distinguishable visually at a distance thanks to a clear colour and a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.

Technical specifications

Hole diameter
22 mm
Colour button
Red
Suitable for illumination
no
Unlocking method
None
Spring-return
no
Diameter cap
60 mm
Suitable for emergency stop
yes
Type of button
High
Colour front ring
Chrome
Degree of protection
Other (Ip: Other)
Material front ring
Metal
With front ring
yes
Switching function latching
yes
