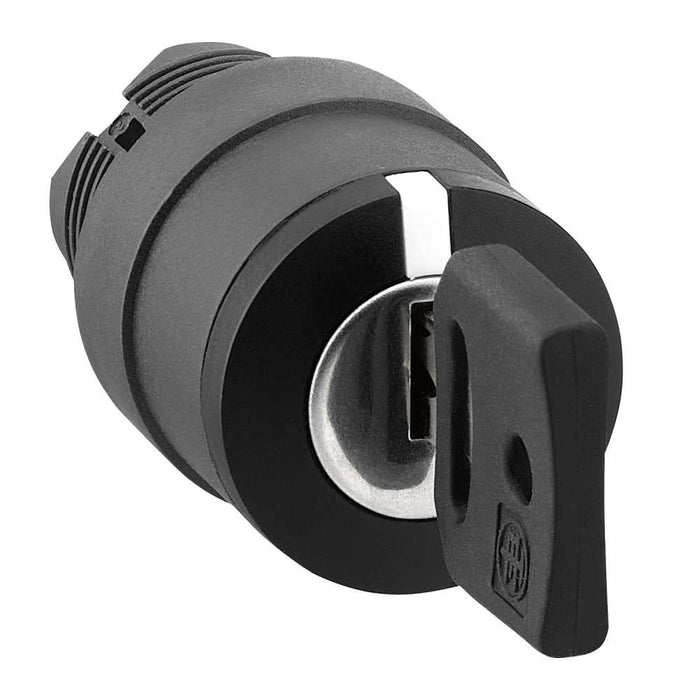

XB4/5 Key Sw Selector Head Black 22mm Key 455 3pos Stay Put

Ideal Part Number SCHZB5AG09 Manufacturer Number ZB5AG09 Barcode 3389110905786

Product Details

Head for key selector switch Harmony XB5 XB4 Ø22 mm 3 position stay put 455

This head with key (key no.455) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Hole diameter
22 mm
Number of switch positions
3
Suitable for illumination
no
Spring-return
no
Colour front ring
Black
Degree of protection
IP66 (Ip, front side: IP66)
Width opening
0 mm
Height opening
0 mm
Material front ring
Plastic
With front ring
yes
Construction type lens
Round
Type of control element
Key
Colour indicator light cap
Not applicable
Colour control element
Other
Switching function latching
yes
