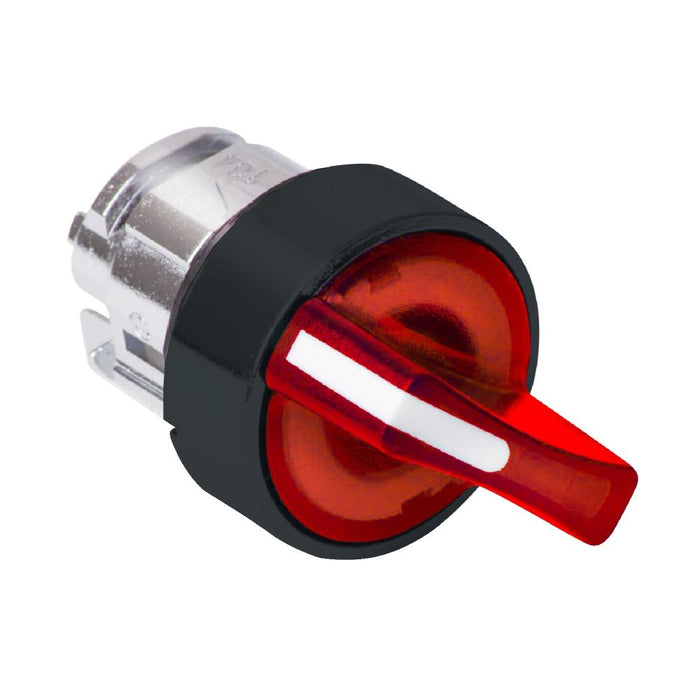

XB4/5 Selector Sw Head Illum 22mm Red 3pos Spring Return

Ideal Part Number SCHZB5AK1543 Manufacturer Number ZB5AK1543 Barcode 3389110906226

Product Details

Head for illuminated selector switch Harmony XB5 XB4 red Ø22 mm 3 position spring return

This red illuminated switch head for integral LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Hole diameter
22
Number of switch positions
3
Suitable for illumination
yes
Spring-return
yes
Colour front ring
Black
Degree of protection (IP), front side
IP66
Width opening
0
Height opening
0
Material front ring
Plastic
With front ring
yes
Construction type lens
Round
Type of control element
Short thumb-grip
Colour indicator light cap
Red
Colour control element
Red
Switching function latching
no
Hole diameter (unit)
mm
Width opening (unit)
mm
Height opening (unit)
mm
