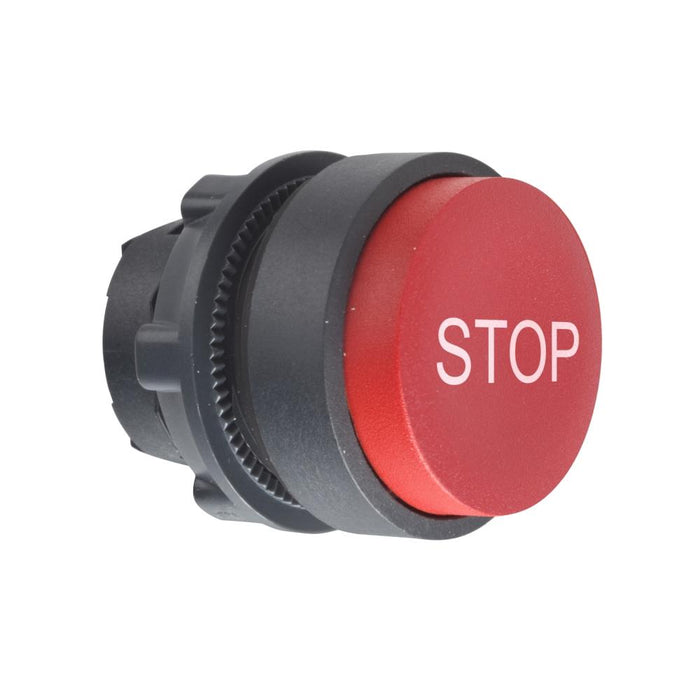

XB5 Pbutton Head Projecting 22mm Red Spr Ret Marked STOP

Product Details

Harmony XB5 Projecting push button head Ø40 plastic red Ø22 spring return marked STOP

This red projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear colour and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Hole diameter
22 mm
Colour button
Red
Suitable for illumination
no
Number of command positions
1
Spring-return
yes
Labelled
yes
Type of button
High
Colour front ring
Black
Degree of protection
IP66 (Ip, front side: IP66)
Width opening
0 mm
Height opening
0 mm
Material front ring
Plastic
With front ring
yes
Construction type lens
Round
Switching function latching
no
