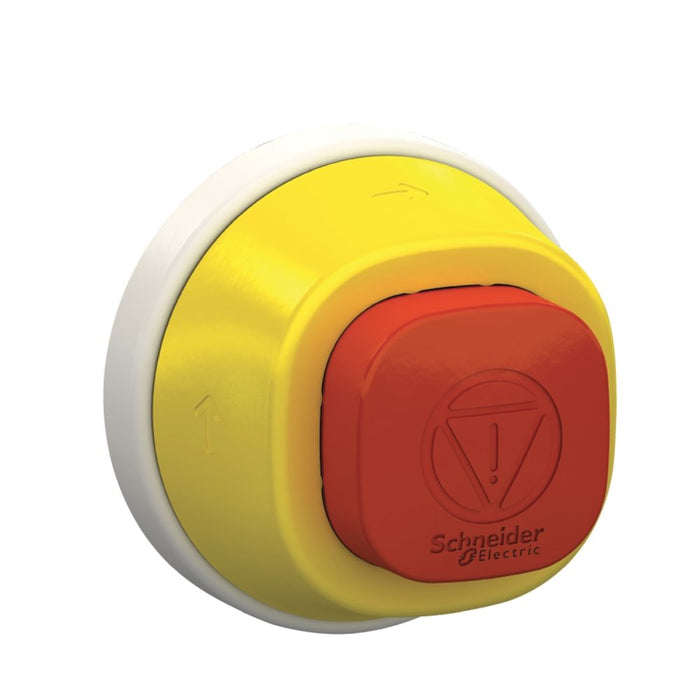

XB5 Emerg Stop Head Antimicrobial 22mm Red Turn to Release

Ideal Part Number SCHZB5AS84W00 Manufacturer Number ZB5AS84W00 Barcode 3606489744939

Product Details

Harmony XB5 Antimicrobial Emergency stop head plastic red Ø22 trigger latching turn to release red

This emergency stop / shutdown button head is easily combined with contact blocks and installed into standard 22mm diameter cut-outs. It comes with antimicrobial characteristics. It is clearly distinguishable visually at a distance thanks to a clear colour and a prominent 32mm red square push button. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67, IP69 / IP69K, making it ideal for operation in harsh environments.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Hole diameter
22
Suitable for illumination
no
Unlocking method
Other
Spring-return
no
Diameter cap
40
Suitable for emergency stop
yes
Type of button
High
Colour front ring
Black
Width opening
60
Height opening
60
Degree of protection (IP)
IP66
Material front ring
Plastic
With front ring
yes
Construction type lens
Round
Switching function latching
yes
Hole diameter (unit)
mm
Diameter cap (unit)
mm
Width opening (unit)
mm
Height opening (unit)
mm
