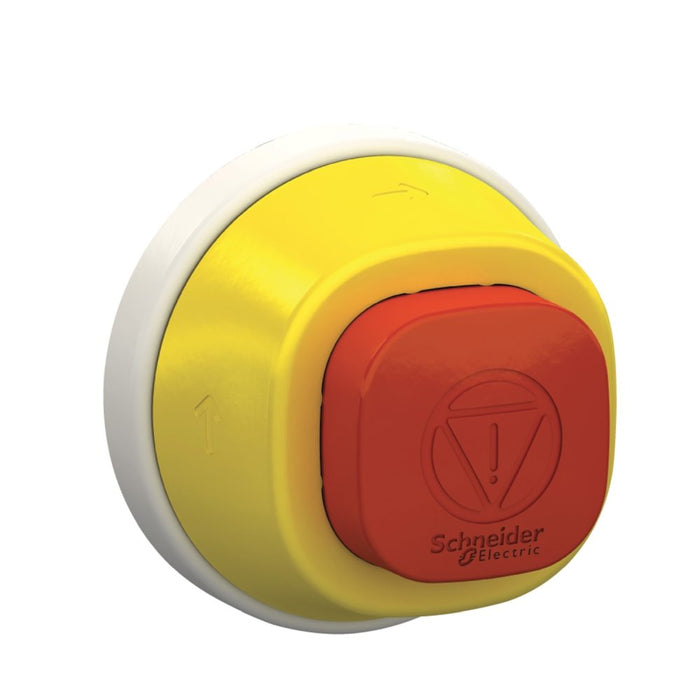

XB5 Em Stop Hd Ill Antimicrobial 22mm Red LED Turn 110-120V

Product Details

Harmony XB5 Antimicrobial Illuminated emergency stop head plastic red Ø22 trigger latching turn to release red LED 110...120 V AC

This emergency stop / shutdown button head is easily combined with contact blocks and installed into standard 22mm diameter cut-outs. It comes with antimicrobial characteristics. It is clearly distinguishable visually at a distance thanks to a clear colour and a prominent 32mm red square push button. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67, IP69 / IP69K, making it ideal for operation in harsh environments.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Hole diameter
22 mm
Suitable for illumination
yes
Spring-return
no
Diameter cap
40 mm
Suitable for emergency stop
yes
Type of button
High
Colour front ring
Black
Width opening
60 mm
Height opening
60 mm
Degree of protection
IP66 (Ip: IP66)
Material front ring
Plastic
With front ring
yes
Construction type lens
Round
Switching function latching
yes
