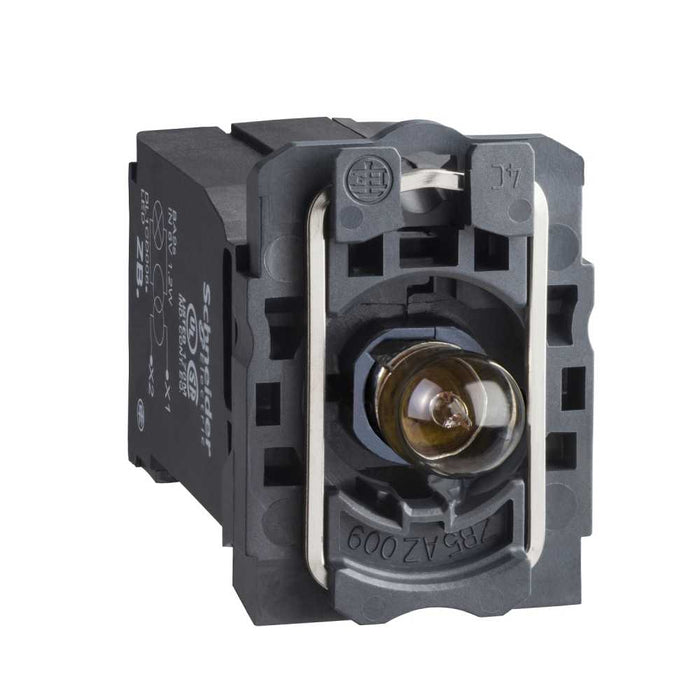

XB4/5 Light Block Assembly Complete
Schneider Electric

XB4/5 Light Block Assembly Complete

Ideal part number SCHZB5AV5 Manufacturer number ZB5AV5 Barcode 3389110908220
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Complete body/light block assembly Harmony XB5 XB4 light with body/fixing collar with BA9s incandesc. bulb 400 V

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Technical specifications

Lamp holder
BA9s
With integrated voltage decreasing resistor
no
With integrated diode
no
Colour light source
Not applicable
Type of fastening
Front fastening
Connection type auxiliary circuit
Screw connection
Rated voltage Ue at AC 50 Hz
400 V
Rated voltage Ue at AC 60 Hz
400 V
Rated voltage Ue at DC
0 V
Voltage type for actuating
AC
