XB5 Pbutton Head Dbl Ill 22mm Flush Green I Projecting Red O
Schneider Electric

XB5 Pbutton Head Dbl Ill 22mm Flush Green I Projecting Red O

Ideal part number SCHZB5AW7L3740 Manufacturer number ZB5AW7L3740 Barcode 3389119043373
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

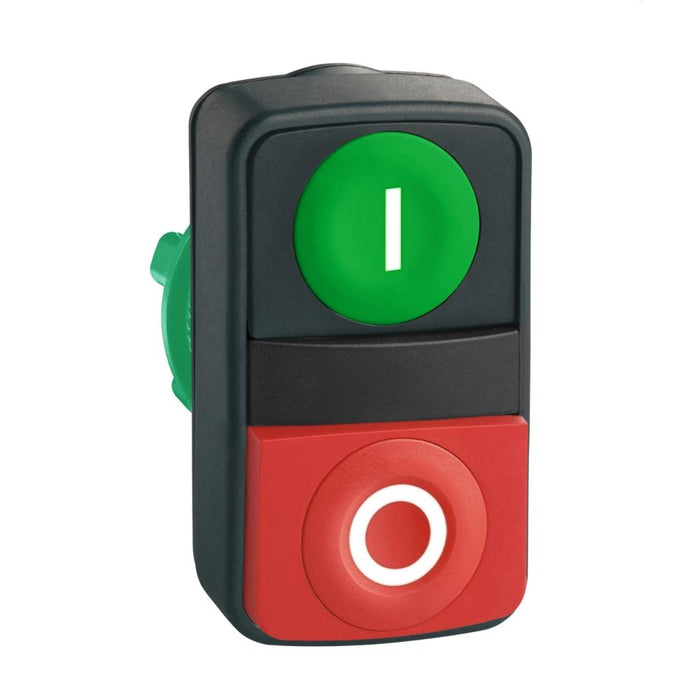

Head for illuminated double headed push button Harmony XB5 XB4 green flush/red projecting pushbutton Ø22 mm unmarked

This double head has 1 red, 1 green button and 1 central white pilot light, it provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its pilot light, clear colours. It is also distinguishable by touch due to flush and projecting elements. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Technical specifications

Hole diameter
22 mm
Colour button
Red-green
Suitable for illumination
yes
Number of command positions
2
Spring-return
yes
Labelled
no
Type of button
High
Colour front ring
Black
Degree of protection
IP66 (Ip, front side: IP66)
Width opening
0 mm
Height opening
0 mm
Material front ring
Plastic
With front ring
yes
Construction type lens
Rectangular
Switching function latching
no
