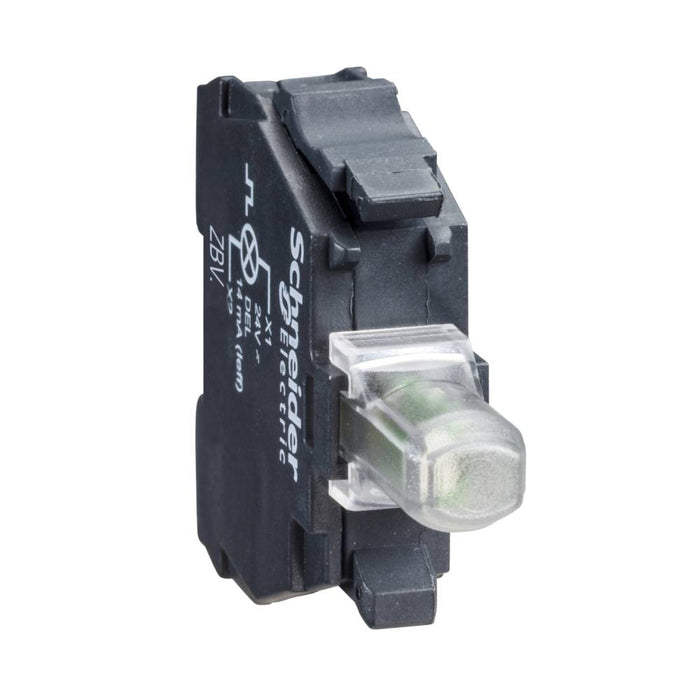

XB4 Light Block 22mm Head White LED Spr Clamp Ter 110-120VAC
Schneider Electric

XB4 Light Block 22mm Head White LED Spr Clamp Ter 110-120VAC

Ideal part number SCHZBVG1 Manufacturer number ZBVG1 Barcode 3389110089660
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony XB4 Light block for head Ø22 white integral LED 110...120 V AC

This Harmony ZB, XB5 white Light block operates with an integral LED. It is supplied with 110V to 120V AC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It features high endurance LED lighting for less replacement and process downtimes. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Technical specifications

Lamp holder
Other
Transformer integrated
no
With integrated voltage decreasing resistor
no
With integrated diode
yes
Colour light source
White
Lamp type
LED
Type of fastening
Front fastening
With light source
yes
Connection type auxiliary circuit
Screw connection
Rated voltage Ue at AC 50 Hz
110 V
Rated voltage Ue at AC 60 Hz
110 V
Rated voltage Ue at DC
0 V
Voltage type for actuating
AC
