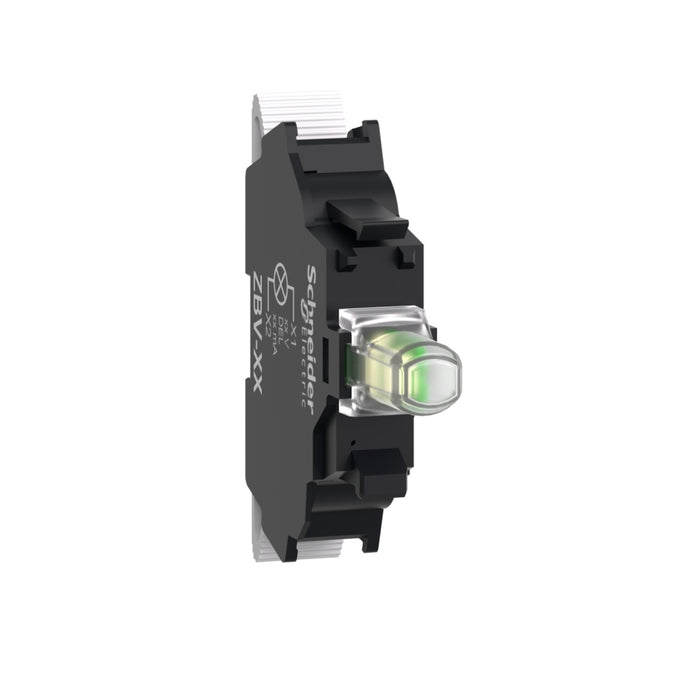

Light Block Integrated LED 230V White
Schneider Electric

Light Block Integrated LED 230V White

Ideal part number SCHZBVM15 Manufacturer number ZBVM15 Barcode 3389119037594
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, spring clamp terminals, 230…240V AC

This Harmony ZB, white light block operates with a universal LED. It is supplied with 230V to 240V AC and uses spring terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Technical specifications

Lamp holder
Other
Transformer integrated
no
With integrated voltage decreasing resistor
no
With integrated diode
yes
Colour light source
White
Lamp type
LED
Type of fastening
Front fastening
With light source
yes
Connection type auxiliary circuit
Spring clamp connection
Rated voltage Ue at AC 50 Hz
230 V
Rated voltage Ue at AC 60 Hz
230 V
Rated voltage Ue at DC
0 V
Voltage type for actuating
AC
