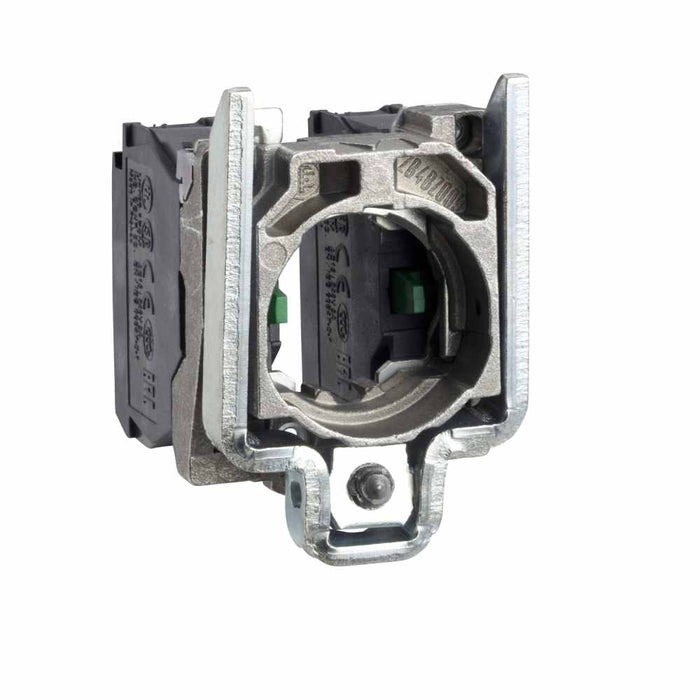

XB4 Joystick Controller Assembly Complete 2-Direction
Schneider Electric

XB4 Joystick Controller Assembly Complete 2-Direction

Ideal part number SCHZD4PA103 Manufacturer number ZD4PA103 Barcode 3389110285918
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Complete body/contact assembly for joystick controller Harmony XB4 contact block with body/fixing collar 2 direction

This Harmony XB4 contact block operates with 2 directions and uses screw-clamp terminals. It has a chromium-plated metal bezel. This contact block is pre-mounted to a body fixing collar and allow fast and easy replacement and configuration of your joystick controllers with 2-direction operation. It is easily installed and replaced on XB4 complete joystick controllers and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance allows less maintenance and damage in your installation. It has clear colour scheme for NO and NC contact block types.

Technical specifications

Mounting method
Front fastening
Model
Half-integrated
Rated operation current Ie at AC-15, 230 V
3 A
Type of electric connection
Screw connection
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
