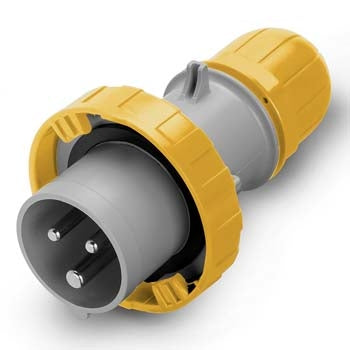

Plug 16A 2PE 3Pin 110V Yellow 4H IP67
Scame

Plug 16A 2PE 3Pin 110V Yellow 4H IP67

Ideal part number SCM2181630 Manufacturer number 218.163 Barcode 8001636040219
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Plug, 16Amp, 3 Pin, 2 Pole and Earth, 110V, Yellow, 4h, IP67

OPTIMA Series is a complete range of industrial plugs from 16 up to 125A. Robust and safe industrial plugs, thanks to the use of high performance technopolymers bodies and to the external cable gland with cable clamp function. The OPTIMA series plugs are available with multiple types of terminals (screw, spring, insulating perforation for currents up to 32A or mantle terminals for the 63 and 125A versions) to always guarantee the best connection according to the type of use and wiring requirements. The efficiency of the contacts over time is also guaranteed by the use of nickel-plated brass pins, resistant to oxidation and aging. Fast to wire thanks to the opening of the body by means of a snap-on steel spring mechanism, the OPTIMA series plugs do not neglect the environmental aspect, being produced with halogen-free materials

Technical specifications

Cable entry
Cable Gland
Number of poles
3
Material
Plastic (technopolymer)
IEC-amperage
16 A
Connection system
Screw terminals
Insert direction
Straight
Degree of protection
IP66-IP67-IP69 (Ip: IP66-IP67-IP69)
Clock hour position
4 h
Identification colour
Yellow
Voltage according to EN 60309-2
50-200V
