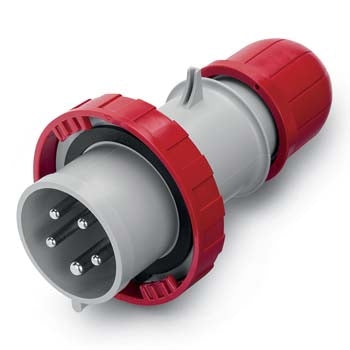

Plug 16A 3PNE 5Pin 415V Red IP67 Ins-Perf
Scame

Plug 16A 3PNE 5Pin 415V Red IP67 Ins-Perf

Ideal part number SCM2181637P Manufacturer number 218.1637P Barcode 8001636040417
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Plug, 16Amp, 5 Pin, 3 Pole, Neutral and Earth, 415V Red IP67 Perforating terminals

OPTIMA Series is a complete range of industrial plugs from 16 up to 125A. Robust and safe industrial plugs, thanks to the use of high performance technopolymers bodies and to the external cable gland with cable clamp function. The OPTIMA series plugs are available with multiple types of terminals (screw, spring, insulating perforation for currents up to 32A or mantle terminals for the 63 and 125A versions) to always guarantee the best connection according to the type of use and wiring requirements. The efficiency of the contacts over time is also guaranteed by the use of nickel-plated brass pins, resistant to oxidation and aging. Fast to wire thanks to the opening of the body by means of a snap-on steel spring mechanism, the OPTIMA series plugs do not neglect the environmental aspect, being produced with halogen-free materials.

Technical specifications

Relevant standards
IEC 60309
Colour
Red
Approx weight
0.256 kg
Ingress Protection
IP66, IP67 (Ip: IP66, IP67)
Impact resistance
IK08 (Ik: IK08)
Rated voltage
415V
Ampage rating
16
Hour position
6H
Male / Femaie
Male
Terminal type
Perforating terminal
Pins
3P + N + E
Type of available outlet
Straight
Contact material
CuZn (brass)
Surface treatment contacts
Nickel-plated
Cable entry
Cable gland
Material
Thermoplastic
