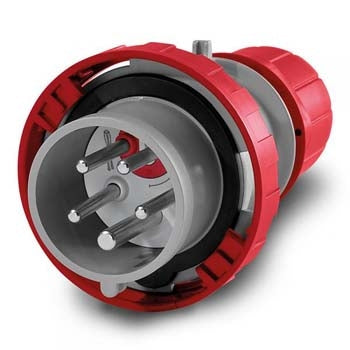

Plug Phase Rev 32A 3PNE 5Pin 415V Red IP67
Scame

Plug Phase Rev 32A 3PNE 5Pin 415V Red IP67

Ideal part number SCM2183237RV Manufacturer number 218.3237RV Barcode 8001636235653
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Plug, 32Amp, 5 Pin, 3 Pole, Neutral and Earth, 415V Red IP67 with Reverse Device

OPTIMA-REVERSE is a range of 16 and 32A industrial plugs, which allow the rapid reversal of two phases to restore the correct direction of rotation for three-phase motors of mobile and fixed loads. The inversion of the phases is done simply by pushing and turning by a screwdriver the support where the two phase pins are mounted Robust and safe industrial plugs, thanks to the use of high performance technopolymer bodies and to the external cable gland with cable clamp function. The efficiency of the contacts over time is also guaranteed by the use of nickel-plated brass pins, resistant to oxidation and aging. Quick to wire thanks to the opening of the body by means of a snap-on steel spring mechanism and screw terminals, the Optima Reverse series plugs do not neglect the environmental aspect, being produced with halogen-free materials

Technical specifications

Relevant standards
IEC 60309
Colour
Red
Approx weight
0.359 kg
Ingress Protection
IP66, IP67 (Ip: IP66, IP67)
Impact resistance
IK08 (Ik: IK08)
Rated voltage
415V
Ampage rating
32
Hour position
6H
Male / Femaie
Male
Terminal type
Screw terminal
Pins
3P + N + E
Type of available outlet
Straight
Contact material
CuZn (brass)
Surface treatment contacts
Nickel-plated
Cable entry
Cable gland
Material
Thermoplastic
