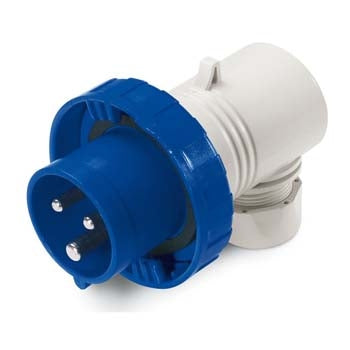

Plug 16A 2PE 3Pin 230V Blue 90Deg IP67
Scame

Plug 16A 2PE 3Pin 230V Blue 90Deg IP67

Ideal part number SCM2261633 Manufacturer number 226.1633 Barcode 8001636044446
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Plug, 16Amp, 3 Pin, 2 Pole and Earth, 230V, Blue, 90 degrees, IP67

EUREKA series is a range of 16 and 32A industrial plugs with 90 ° cable outlet. The efficiency of the contacts over time is also guaranteed by the use of nickel-plated brass pins, resistant to oxidation and aging. Quick to wire thanks to the opening of the body by means of a snap-on steel spring mechanism and screw terminals.

Technical specifications

Relevant standards
IEC 60309
Colour
Blue
Approx weight
0.15 kg
Ingress Protection
IP66, IP67 (Ip: IP66, IP67)
Impact resistance
IK07 (Ik: IK07)
Rated voltage
240V
Ampage rating
16
Hour position
6H
Male / Femaie
Male
Terminal type
Screw terminal
Pins
2P + E
Type of available outlet
90° angled
Contact material
CuZn (brass)
Surface treatment contacts
Nickel-plated
Cable entry
Cable gland
