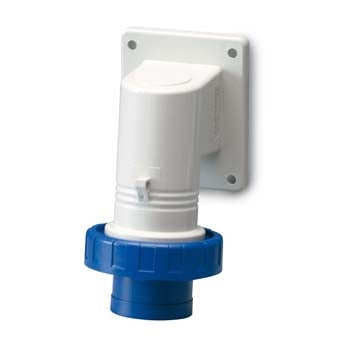

Inlet 16A 2PE 3Pin 230V Blue 90Deg IP67
Scame

Inlet 16A 2PE 3Pin 230V Blue 90Deg IP67

Ideal part number SCM2471693 Manufacturer number 247.1693 Barcode 8001636081168
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Inlet, 16Amp, 3 Pin,2 Pole and Earth, 230V, Blue, 90 degrees, IP67

EUREKA is a range of 16 and 32A flush mounting industrial inlets with 90° angled cable outlet. The design of the plug has the advantage of a small size, thus preventing any damage due to accidental contacts due to excessive protrusion. The efficiency of the contacts over time is also guaranteed by the use of nickel-plated brass pins, resistant to oxidation and aging, while the IP degree stability is ensured by the co-molded gasket.

Technical specifications

Relevant standards
IEC 60309
Colour
Blue
Approx weight
0.17 kg
Ingress Protection
IP66, IP67 (Ip: IP66, IP67)
Impact resistance
IK07 (Ik: IK07)
Rated voltage
240V
Ampage rating
16
Hour position
6H
Male / Femaie
Male
Terminal type
Screw terminal
Pins
2P + E
Type of available outlet
90° Angled
Contact material
CuZn (brass)
Surface treatment contacts
Nickel-plated
Cable entry
PG 16
