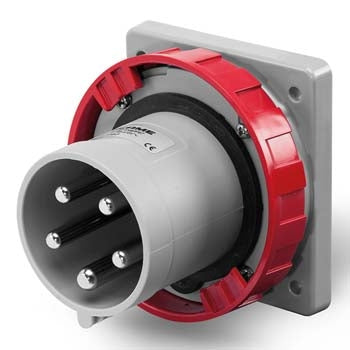

Inlet 125A 3PNE 5Pin 415V Red IP67
Scame

Inlet 125A 3PNE 5Pin 415V Red IP67

Ideal part number SCM24812597 Manufacturer number 248.12597 Barcode 8001636287386
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Inlet, 125Amp, 5 Pin, 3 Pole, Neutral and Earth, 415V, Red, IP67

OPTIMA is a complete range of flush mounting industrial appliance inlets from 16 up to 125A Robust and safe industrial inlets thanks to the use of high performance technopolymer enclosures. The inlets of the OPTIMA series are available with multiple types of terminals (screw type for currents up to 32A and mantle type in the 63 and 125A versions) to always guarantee the best connection according to the type of use and the wiring needs. The efficiency of the contacts over time is also guaranteed by the use of nickel-plated brass pins, resistant to oxidation and aging. The unloseable co-molded gasket is a guarantee of a constant seal of the IP protection degree. The OPTIMA series inlets do not neglect the environmental aspect, being produced with halogen-free materials.

Technical specifications

Relevant standards
IEC 60309
Colour
Red
Approx weight
1.001 kg
Ingress Protection
IP66, IP67, IP69 (Ip: IP66, IP67, IP69)
Impact resistance
IK08 (Ik: IK08)
Rated voltage
415V
Ampage rating
125
Hour position
6H
Male / Femaie
Male
Terminal type
Mantle terminal
Type of available outlet
Straight
Contact material
CuZn (brass)
Surface treatment contacts
Nickel-plated
