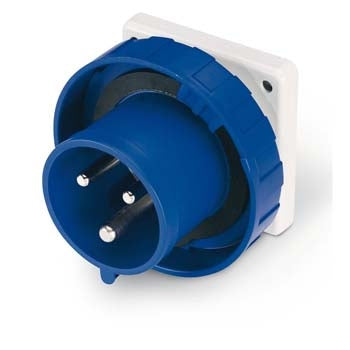

Inlet Flush 16A 2PE 3Pin 230V Blue IP67
Scame

Inlet Flush 16A 2PE 3Pin 230V Blue IP67

Ideal part number SCM2481693 Manufacturer number 248.1693 Barcode 9416024007306
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Inlet, Flush, 16Amp, 3 Pin, 2 Pole and Earth, 230V, Blue, IP67

OPTIMA is a complete range of flush mounting industrial appliance inlets from 16 up to 125A Robust and safe industrial inlets thanks to the use of high performance technopolymer enclosures. The inlets of the OPTIMA series are available with multiple types of terminals (screw type for currents up to 32A and mantle type in the 63 and 125A versions) to always guarantee the best connection according to the type of use and the wiring needs. The efficiency of the contacts over time is also guaranteed by the use of nickel-plated brass pins, resistant to oxidation and aging. The unloseable co-molded gasket is a guarantee of a constant seal of the IP protection degree. The OPTIMA series inlets do not neglect the environmental aspect, being produced with halogen-free materials.

Technical specifications

Relevant standards
IEC 60309
Colour
Blue
Approx weight
0.128 kg
Ingress Protection
IP66, IP67, IP69 (Ip: IP66, IP67, IP69)
Impact resistance
IK08 (Ik: IK08)
Rated voltage
240V
Ampage rating
16
Hour position
6H
Male / Femaie
Male
Terminal type
Screw terminal
Pins
2P + E
Type of available outlet
Straight
Contact material
CuZn (brass)
Surface treatment contacts
Nickel-plated
