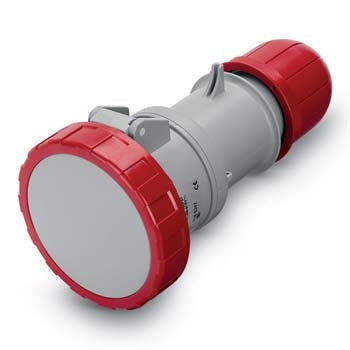

Connector 125A 3PNE 5Pin 415V Red IP67
Scame

Connector 125A 3PNE 5Pin 415V Red IP67

Ideal part number SCM31812547 Manufacturer number 318.12547 Barcode 8001636003931
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Connector, 125Amp, 5 Pin, 5 Pin, 3 Pole, Neutral and Earth, 415V, Red, IP67

OPTIMA is a complete range of industrial connectors from 16 up to 125A. Robust and safe industrial sockets, thanks to the use of high performance technopolymer enclosures and to the external cable gland with cable clamp function. The OPTIMA series electrical connectors are available with multiple types of terminals (screw, spring, insulating perforation for currents up to 32A and mantle type in the 63 and 125A versions) to always guarantee the best connection according to the type of use and wiring requirements. Fast to wire thanks to the opening of the body by means of a snap-on steel spring mechanism, the Optima series connectors do not neglect the environmental aspect, being produced with halogen-free materials. The SAFE-IN versions are equipped with protective shutters on the contact tubes so to prevent harmful contact with live parts, adding further safety in case of installation in places with unqualified users.

Technical specifications

Relevant standards
IEC 60309
Colour
Red
Approx weight
1.225 kg
Ingress Protection
IP66, IP67, IP69 (Ip: IP66, IP67, IP69)
Impact resistance
IK08 (Ik: IK08)
Rated voltage
415V
Ampage rating
125
Hour position
6H
Male / Femaie
Female
Terminal type
Mantle terminal
Type of available outlet
Straight
Contact material
CuZn (brass)
Cable entry
Cable gland
