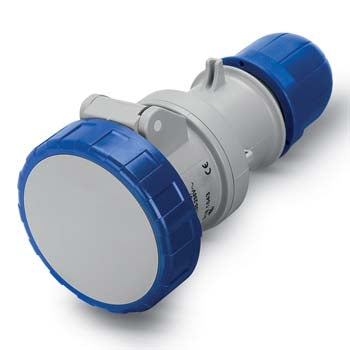

Connector 16A 2PE Clear/Blue IP67 Ins-Perf
Scame

Connector 16A 2PE Clear/Blue IP67 Ins-Perf

Ideal part number SCM3181643PTR Manufacturer number 318.1643PTR Barcode 941602400949
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Connector, 16Amp, 3 Pin, 2 Pole and Earth, 230V, Clear/Blue, IP67, Perforating terminals

OPTIMA is a complete range of industrial connectors from 16 up to 125A. Robust and safe industrial sockets, thanks to the use of high performance technopolymer enclosures and to the external cable gland with cable clamp function. The OPTIMA series electrical connectors are available with multiple types of terminals (screw, spring, insulating perforation for currents up to 32A and mantle type in the 63 and 125A versions) to always guarantee the best connection according to the type of use and wiring requirements. Fast to wire thanks to the opening of the body by means of a snap-on steel spring mechanism, the Optima series connectors do not neglect the environmental aspect, being produced with halogen-free materials. The SAFE-IN versions are equipped with protective shutters on the contact tubes so to prevent harmful contact with live parts, adding further safety in case of installation in places with unqualified users.

Technical specifications

Cable entry
Cable Gland
Number of poles
3
Material
Plastic (technopolymer)
IEC-amperage
16 A
Connection system
Perforating terminals
Insert direction
Straight
Degree of protection
IP66-IP67-IP69 (Ip: IP66-IP67-IP69)
Clock hour position
6 h
Identification colour
Blue
Voltage according to EN 60309-2
200-250V
