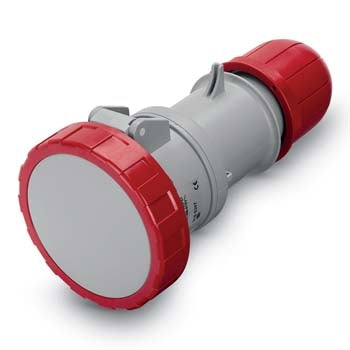

Connector 32A Reefer 3PE 4Pin 415V Red IP67
Scame

Connector 32A Reefer 3PE 4Pin 415V Red IP67

Ideal part number SCM31832464 Manufacturer number 318.32464 Barcode 8001636041544
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Connector, 32Amp, 4 Pin, Reefer, 3 Pole and Earth, 415V, Red, IP67

OPTIMA is a complete range of industrial connectors from 16 up to 125A. Robust and safe industrial sockets, thanks to the use of high performance technopolymer enclosures and to the external cable gland with cable clamp function. The OPTIMA series electrical connectors are available with multiple types of terminals (screw, spring, insulating perforation for currents up to 32A and mantle type in the 63 and 125A versions) to always guarantee the best connection according to the type of use and wiring requirements. Fast to wire thanks to the opening of the body by means of a snap-on steel spring mechanism, the Optima series connectors do not neglect the environmental aspect, being produced with halogen-free materials. The SAFE-IN versions are equipped with protective shutters on the contact tubes so to prevent harmful contact with live parts, adding further safety in case of installation in places with unqualified users.

Technical specifications

Relevant standards
IEC 60309
Colour
Red
Approx weight
0.329 kg
Ingress Protection
IP66, IP67, IP69 (Ip: IP66, IP67, IP69)
Impact resistance
IK08 (Ik: IK08)
Rated voltage
250V
Ampage rating
32
Hour position
3H
Male / Femaie
Female
Terminal type
Screw terminal
Pins
3P + E
Type of available outlet
Straight
Contact material
CuZn (brass)
Surface treatment contacts
Nickel-plated
Cable entry
Cable gland
