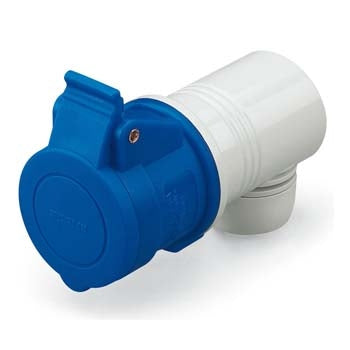

Connector 16A 2PE 3Pin 230V Blue 90Deg IP44
Scame

Connector 16A 2PE 3Pin 230V Blue 90Deg IP44

Ideal part number SCM3211643 Manufacturer number 321.1643 Barcode 8001636044620
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Connector, 16Amp, 3 Pin, 2 Pole and Earth, 230V, Blue, 90 degrees, IP44

Eureka Series is a range of industrial connectors 16 and 32 A with 90° angled cable outlet. The connector conformation has the advantage of a reduced obstruction, thus preventing eventual damages by accidental contacts due to excessive protusion. Screw terminals and internal cable clamp to screw.

Technical specifications

Relevant standards
IEC 60309
Colour
Blue
Approx weight
0.147 kg
Ingress Protection
IP44 (Ip: IP44)
Impact resistance
IK07 (Ik: IK07)
Rated voltage
240V
Ampage rating
16
Hour position
6H
Male / Femaie
Female
Terminal type
Screw terminal
Pins
2P + E
Type of available outlet
90° Angled
Contact material
CuZn (brass)
Surface treatment contacts
Nickel-plated
Cable entry
Cable sleeve
