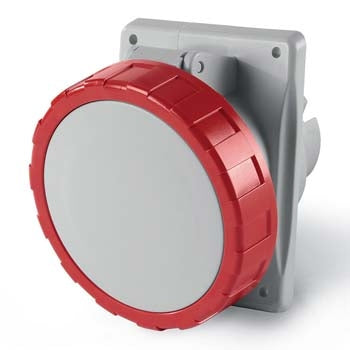

Socket Outlet 32A 3PE 4Pin 415V Red IP67
Scame

Socket Outlet 32A 3PE 4Pin 415V Red IP67

Ideal part number SCM4183266 Manufacturer number 418.3266 Barcode 8001636248103
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Outlet Socket, 32Amp, 4 Pin, 3 Pole and Earth, 415V Red IP67

OPTIMA is a complete range of flush mounting industrial socket outlets from 16 up to 125A, with straight or angled output. Robust and secure industrial sockets, thanks to the use of high performance technopolymer bodies. The electrical sockets of the OPTIMA series are available with multiple types of terminals ( screw or spring type for currents up to 32A and mantle type in the 63 and 125A versions) to always guarantee the best connection according to the type of use and the wiring needs. The unlosable co-molded gasket guarantees a constant seal of the IP protection degree. The OPTIMA series electrical sockets do not neglect the environmental aspect, being produced with halogen-free materials. The SAFE-IN versions are equipped with protective shutters on the contact tubes so to prevent harmful contact with live parts, adding further safety in case of installation in places with unqualified users.

Technical specifications

Relevant standards
IEC 60309
Colour
Red
Approx weight
0.249 kg
Ingress Protection
IP66, IP67, IP69 (Ip: IP66, IP67, IP69)
Impact resistance
IK08 (Ik: IK08)
Rated voltage
415V
Ampage rating
32
Hour position
6H
Male / Femaie
Female
Terminal type
Screw terminal
Pins
3P + E
Type of available outlet
Angled
Contact material
CuZn (brass)
