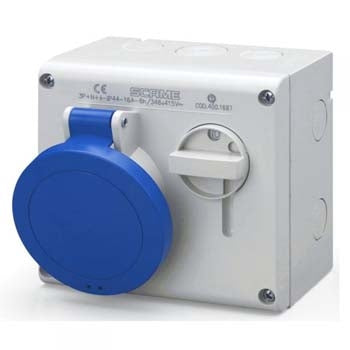

Omnia Sw Socket 16A 2PE 3Pin 230V Blue IP44
Scame

Omnia Sw Socket 16A 2PE 3Pin 230V Blue IP44

Ideal part number SCM5001683 Manufacturer number 500.1683 Barcode 8001636049441
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Omnia Switch Socket, 16Amp, 3 Pin, 2 Pole and and Earth, 230V, Blue, IP44

OMNIA is a complete range of interlocked socket outlets from 16 to 63A, fused or without fuse, with compact dimensions and great installation flexibility. Available as flush mounting or surface mounting version in single configurations or up to 4 sockets through a modular base system even provided with junction box or switchboard. OMNIA in flush mounting configuration finds its ideal use in the tertiary sector, but the dimensions of the flange allow it to be installed in the DOMINO and MBOX distribution boards for industrial and construction site applications, taking advantage of the modularity that has always been at the base of the SCAME systems.

Technical specifications

Relevant standards
IEC 60309
Colour
Blue
Approx weight
0.564 kg
Ingress Protection
IP44 (Ip: IP44)
Impact resistance
IK08 (Ik: IK08)
Rated voltage
240V
Ampage rating
16
Hour position
6H
Male / Femaie
Female
Terminal type
Screw terminal
Pins
2P + E
Contact material
CuZn (brass)
