Omnia Sw Socket 16A 3PNE 5Pin 415V Red IP67
Scame

Omnia Sw Socket 16A 3PNE 5Pin 415V Red IP67

Ideal part number SCM5051687 Manufacturer number 505.1687 Barcode 8001636050140
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

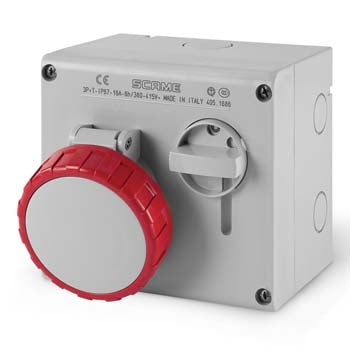

Omnia Switch Socket, 16Amp, 5 Pin, 3 Pole, Neutral and Earth, 415V, Red, IP67

OMNIA is a complete range of interlocked socket outlets from 16 to 63A, fused or without fuse, with compact dimensions and great installation flexibility. Available as flush mounting or surface mounting version in single configurations or up to 4 sockets through a modular base system even provided with junction box or switchboard. OMNIA in flush mounting configuration finds its ideal use in the tertiary sector, but the dimensions of the flange allow it to be installed in the DOMINO and MBOX distribution boards for industrial and construction site applications, taking advantage of the modularity that has always been at the base of the SCAME systems.

Technical specifications

Relevant standards
IEC 60309
Colour
Red
Approx weight
0.674 kg
Ingress Protection
IP66, IP67 (Ip: IP66, IP67)
Impact resistance
IK08 (Ik: IK08)
Rated voltage
415V
Ampage rating
16
Hour position
6H
Male / Femaie
Female
Terminal type
Screw terminal
Pins
3P + N + E
Contact material
CuZn (brass)
