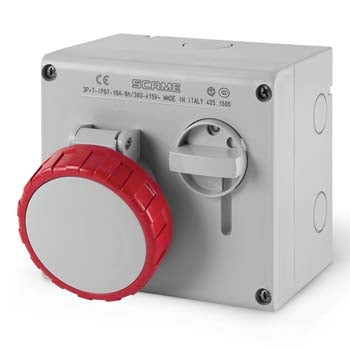

Omnia Reefer Sw Socket 32A 3P+E 3H Red IP67
Scame

Omnia Reefer Sw Socket 32A 3P+E 3H Red IP67

Ideal part number SCM50532864 Manufacturer number 505.32864 Barcode 8001636050409
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Omnia Reefer Switch Socket, 32Amp, 4 Pin, 3 Pole and Earth, ,3H, Red, IP67

OMNIA is a complete range of interlocked socket outlets from 16 to 63A, fused or without fuse, with compact dimensions and great installation flexibility. Available as flush mounting or surface mounting version in single configurations or up to 4 sockets through a modular base system even provided with junction box or switchboard. OMNIA in flush mounting configuration finds its ideal use in the tertiary sector, but the dimensions of the flange allow it to be installed in the DOMINO and MBOX distribution boards for industrial and construction site applications, taking advantage of the modularity that has always been at the base of the SCAME systems.

Technical specifications

Relevant standards
IEC 60309
Colour
Red
Approx weight
0.72 kg
Ingress Protection
IP66, IP67 (Ip: IP66, IP67)
Impact resistance
IK08 (Ik: IK08)
Rated voltage
250V
Ampage rating
32
Hour position
3H
Male / Femaie
Female
Terminal type
Screw terminal
Pins
3P + E
Contact material
CuZn (brass)
