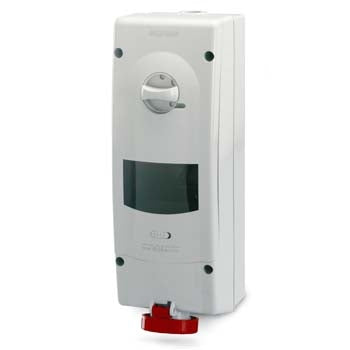

Advance Sw Socket 63A 3PNE 5Pin 415V Red IP66
Scame

Advance Sw Socket 63A 3PNE 5Pin 415V Red IP66

Ideal part number SCM5686387 Manufacturer number 568.6387 Barcode 8001636162317
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Advance Switch Socket 63Amp, 5 Pin, 3 Pole, Neutral and Earth, 415V Red IP66

ADVANCE 2 is a complete range of industrial interlocked sockets available from 16 up to 125A. The industrial sockets of this series are ideal for applications in purely industrial environments, while presenting itself with a particularly refined aesthetic design that makes it attractive as well as functional. Convenient sockets to be wired by removing the cover, since all electrical connections can be made on the base where the control components, disconnectors and switches are fixed. All the sockets are equipped with high-performance disconnectors, ergonomic knobs with possiblity of locking by means of a padlock. The availability of modular bases, enclosures and dedicated consumer units allows the realization of modular and flexible combinations.

Technical specifications

Relevant standards
IEC 60309
Colour
Red
Approx weight
2.646 kg
Ingress Protection
IP66, IP67 (Ip: IP66, IP67)
Impact resistance
IK07 (Ik: IK07)
Rated voltage
415V
Ampage rating
63
Hour position
6H
Male / Femaie
Female
Terminal type
Screw terminal
Pins
3P + N + E
Contact material
CuZn (brass)
