Domino Consumer Unit 12Way & Busbar IP66

by Scame
Ideal Part Number SCM6722012W Manufacturer Number 672.2012 Barcode 9416024007177

Product Details

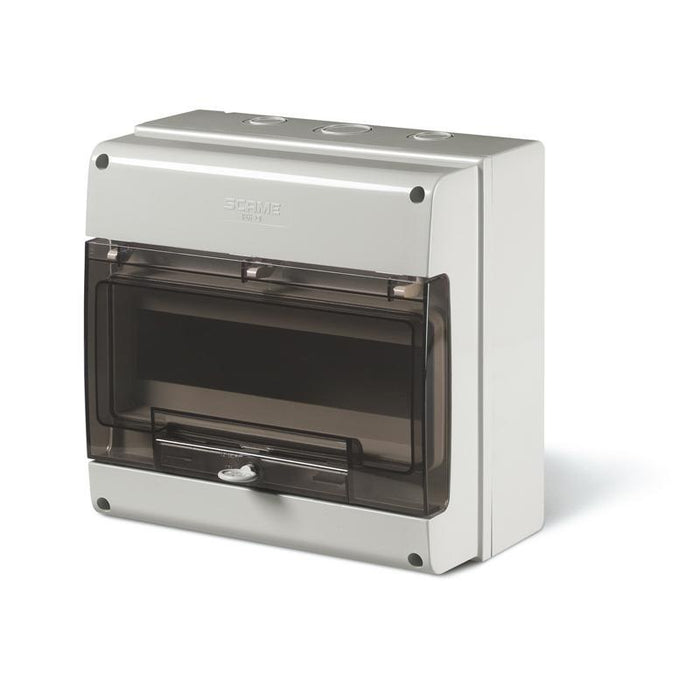

Domino Consumer Unit Surface Enclosure 12 Module with Busbar IP66 Grey

DOMINO IP66 is a complete range of watertight consumer units for surface installation, from 2 up to 64 DIN modules, modular and combinable, DOMINO IP66 consumer units are characterized by a high flexibility of use and considerable expansion possibilities.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Mounting method
Surface mounted
Colour
Grey
Width
256 mm
Height
250 mm
Depth
140 mm
RAL-number
7035
Number of rows
1
Type of covering
Door
Extension possible
no
DIN-rail
yes
Housing material
Thermoplastic
Width in number of modular spacings
12
Degree of protection
IP66 (Ip: IP66)
Transparent cover/door
yes
Cover model
Closed
