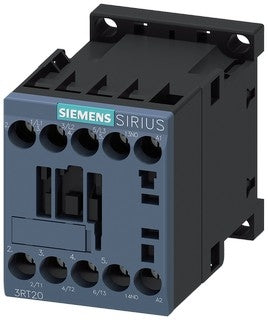

Contactor 3P 7.5kW 16A 24VAC 1N/O

Contactor 3P 7.5kW 16A 24VAC 1N/O

by Siemens
Ideal Part Number SIE3RT20181AB01 Manufacturer Number 3RT2018-1AB01 Barcode 4011209784062

Product Details

Sirius Power contactor, AC-3 16 Amp, 7.5 kW / 400V 1 NO, 24V AC, 50/60 Hz 3-pole, Size S00

In terms of variance and performance range, hardly any wish remains unfulfilled. Switch motors with SIRIUS contactors and use them with real flexibility. Scalability of the devices and accessories as well as the choice of connection technology, such as simple tool-free and error-free installation using spring-cage technology.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Modular version
yes
Rated operation power at AC-3, 400 V
7 kW
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
16 A
Rated operation current Ie at AC-1, 400 V
22 A
Rated control supply voltage AC 50 Hz
24 V
Rated control supply voltage AC 60 Hz
24 V
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
11 A
