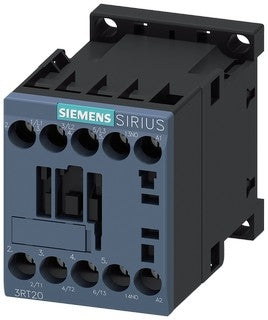

Contactor 3P 7.5kW 16A 230VAC 1N/O
Siemens

Contactor 3P 7.5kW 16A 230VAC 1N/O

Ideal part number SIE3RT20181AP01 Manufacturer number 3RT2018-1AP01 Barcode 4011209784079
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Sirius Power contactor, AC-3 16 Amp, 7.5 kW / 400V 1 NO, 230V AC, 50/60 Hz 3-pole, Size S00

In terms of variance and performance range, hardly any wish remains unfulfilled. Switch motors with SIRIUS contactors and use them with real flexibility. Scalability of the devices and accessories as well as the choice of connection technology, such as simple tool-free and error-free installation using spring-cage technology.

Technical specifications

Modular version
yes
Rated operation power at AC-3, 400 V
7.5 kW
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
16 A
Rated operation current Ie at AC-1, 400 V
22 A
Rated control supply voltage AC 50 Hz
230 V
Rated control supply voltage AC 60 Hz
230 V
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
11.5 A
