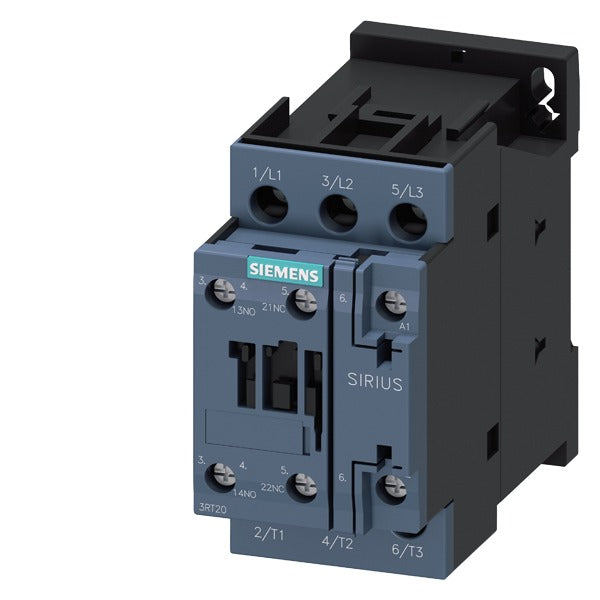

Contactor 3P 18.5kW 38A 24VAC 1N/O 1N/C
Siemens

Contactor 3P 18.5kW 38A 24VAC 1N/O 1N/C

Ideal part number SIE3RT20281AB00 Manufacturer number 3RT2028-1AB00 Barcode 4011209833982
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Contactor, AC-3e, 38 Amp 18.5 kW 400 V, 3-pole, 24 V AC/50 Hz, 1 NO+1 NC, screw terminal

Power contactor, AC-3 38 A, 18.5 kW / 400 V 1 NO + 1 NC, 24 V AC 50 Hz, 3-pole, size S0 screw terminals Power contactor SIRIUS 3RT2 for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense. The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW). Simple, efficient and always up to date - SIRIUS modular system.

Technical specifications

Modular version
yes
Rated operation power at AC-3, 400 V
18.5 kW
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
38 A
Rated operation current Ie at AC-1, 400 V
50 A
Rated control supply voltage AC 50 Hz
24 V
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
22 A
Rated operation power NEMA
18387.4688 kW
Country of Origin
Germany
