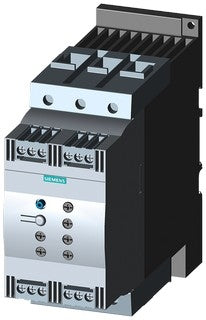

Soft Starter 55kW 106A 400VAC/24VACDC

Soft Starter 55kW 106A 400VAC/24VACDC

by Siemens

Product Details

Sirius Soft Starter 55kW 106Amp 400VAC/24VACDC

SIRIUS soft starters are the best solution when direct-on-line or star/delta starting are not suitable for three-phase motors, because mechanical impacts in the machine or voltage dips in the power supply system can often cause problems. A full and comprehensive range of soft starters with intelligent functions offers a softer alternative for almost every application.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

With display
no
Rated operating voltage Ue
200..480 V
Rated control supply voltage AC 50 Hz
24 V
Rated control supply voltage AC 60 Hz
24 V
Rated control supply voltage DC
24 V
Rated operation current Ie at 40 °C Tu
106 A
Rated power three-phase motor, inline, at 230 V
30 kW
Rated power three-phase motor, inline, at 400 V
55 kW
Rated surrounding temperature without derating
40 °C
Integrated motor overload protection
yes
Voltage type for actuating
AC/DC
Internal bypass
yes
Torque control
no
