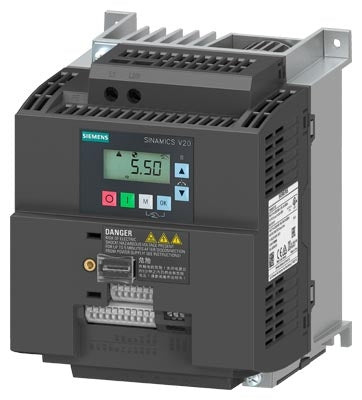

V20 VSD 1Ph 2.2kW 240VAC 6SL3210-5BB22-2BV1
Siemens

V20 VSD 1Ph 2.2kW 240VAC 6SL3210-5BB22-2BV1

Ideal part number SIE6SL32B222BV1 Manufacturer number 6SL3210-5BB22-2BV1 Barcode 4025515675457
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Sinamics Variable Speed Drive V20 1Phase 240VAC 2.2kW

With SINAMICS frequency converter technology, addresses each and every drive application – whether low voltage, medium voltage or DC. Operate synchronous motors as well as induction motors according to the characteristics of the machine you are driving. With integrated safety technology can be centrally installed and commissioned in control cabinets, mounted on walls or decentrally in distributed topologies. Whether for pumping, ventilating, moving, positioning, processing or machining. SINAMICS – simply my drive!

Technical specifications

Width
136 mm
Height
176 mm
Depth
158 mm
Supporting protocol for LON
no
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
With optical interface
no
Supporting protocol for ASI
no
Supporting protocol for PROFIBUS
no
Supporting protocol for CAN
no
Supporting protocol for INTERBUS
no
Supporting protocol for KNX
no
Supporting protocol for Data-Highway
no
Supporting protocol for other bus systems
yes
Degree of protection
IP20 (Ip: IP20)
With PC connection
no
Supporting protocol for SERCOS
no
Supporting protocol for INTERBUS-Safety
no
Mains voltage
230 V
Type of converter
U converter
Number of phases input
1
Integrated breaking resistance
no
Application in industrial area permitted
yes
Application in domestic- and commercial area permitted
yes
Max. output frequency
550 Hz
Max. output at linear load at rated output voltage
2 kW
Max. output at quadratic load at rated output voltage
2 kW
Relative symmetric net voltage tolerance
-15 %
Relative symmetric net frequency tolerance
-5 %
Supporting protocol for AS-Interface Safety at Work
no
Supporting protocol for DeviceNet Safety
no
Supporting protocol for EtherNet/IP
no
Supporting protocol for Foundation Fieldbus
no
Supporting protocol for PROFIsafe
no
Max. output voltage
240 V
Nominal output current I2N
11 A
