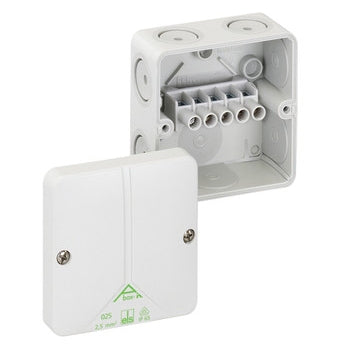

ABox-I Junction Box Polycarb 80x80x52mm with Terminals
Spelsberg

ABox-I Junction Box Polycarb 80x80x52mm with Terminals

Ideal part number SPB49040201 Manufacturer number 49040201 Barcode 4013902152322
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Junction box, with protection class IP65, Nominal cross-section 2.5 mm², Ui=690V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), Self-sealing, flexible insertion membranes, M20, Sealing area 2 - 16 mm, (1 Rear, 7 Side), Internal fastening points, for installations in the industrial arena and protected outside areas, grey, with screw terminal, 5-pole - 2.5 mm² (4 x 1.5² / 4 x 2.5²) Dimensions: 80 x 80 x 52 mm

Technical specifications

Mounting method
Wall-/ceiling mounting
Colour
Grey
Width
80 mm
Model
Junction box
Halogen free
yes
Depth
52 mm
Shape
Square
Surface protection
Untreated
Equipped with
Screwed terminal
Rated insulation voltage Ui
690 V
Length
80 mm
Sealable
yes
Circuit integrity
None
Operating temperature
80 °C
Material
Plastic
Number of inlets
6
Cover attachment
Screwed
Max. conductor cross section
2.5 mm²
With screening
no
Weatherproof
no
Degree of protection
IP65 (Ip: IP65)
Inlet from the rear
yes
For Ex-zone gas
None
Type of housing feed-through
Seal membrane
For Ex-Zone dust
None
Cover model
Other
Castable
yes
With casting compound
no
Transparent cover
no
Mounting in the soil
no
Mounting under water
no
