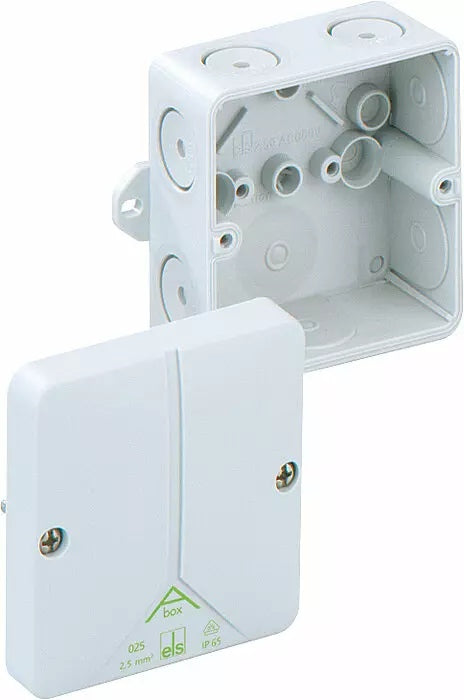

Junction Box 80 x 80 x 52mm with Foot Empty
Spelsberg

Junction Box 80 x 80 x 52mm with Foot Empty

Ideal part number SPBABOX025EFE Manufacturer number ABOX025EFE
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Junction Box, 80mm x 80mm x 52mm, with Foot, Empty

Junction box, with protection class IP65, Nominal cross-section 2.5 mm², Ui=690V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), Self-sealing, flexible insertion membranes, M20, Sealing area 2 - 16 mm, (1 Rear, 7 Side), External fastening points, for standard indoor installations, grey, without terminals Dimensions: 80 x 80 x 52 mm

Technical specifications

Mounting method
Wall-/ceiling mounting
Colour
Grey
Width
80 mm
Model
Junction box
Halogen free
yes
Depth
52 mm
Shape
Square
Surface protection
Untreated
Equipped with
Screwed terminal
Rated insulation voltage Ui
690 V
Length
80 mm
Sealable
yes
Circuit integrity
None
Operating temperature
40 °C
Material
Plastic
Number of inlets
8
Cover attachment
Screwed
Max. conductor cross section
2.5 mm²
With screening
no
Weatherproof
no
Degree of protection
IP65 (Ip: IP65)
Inlet from the rear
yes
For Ex-zone gas
None
Type of housing feed-through
Seal membrane
For Ex-Zone dust
None
Cover model
Other
Castable
yes
With casting compound
no
Transparent cover
no
Mounting in the soil
no
Mounting under water
no
