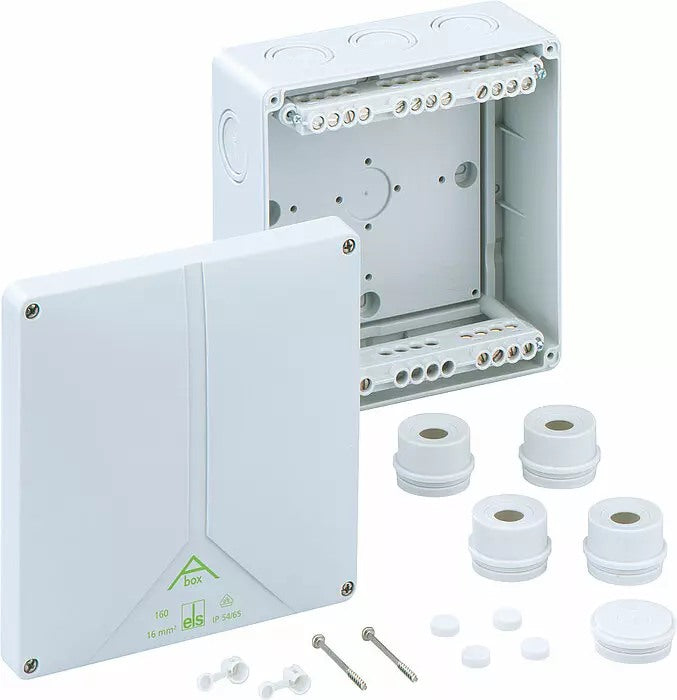

Junction Box 180 x 180 x 91mm with Terminals
Spelsberg

Junction Box 180 x 180 x 91mm with Terminals

Ideal part number SPBABOX160T Manufacturer number ABOX160T
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Junction Box, 180mm x 180mm x 91mm, with Terminals

Junction box, with protection class IP54/IP65, Nominal cross-section 16 mm², Ui=690V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), Push-out membranes, M20/M25/M32/M40, (2 Rear, 10 Side), Internal fastening points, for standard indoor installations, grey, with high-set screw terminal, 5-pole - 16 mm² (4 x 6² / 4 x 10² / 4 x 16²) Dimensions: 180 x 180 x 91 mm Accessories supplied: 4 Attachment bushes IP54 M40 sealing area 17 - 30 mm, 1 sealing plugs M40, 1 Sealing kit

Technical specifications

Mounting method
Wall-/ceiling mounting
Colour
Grey
Width
180 mm
Model
Junction box
Halogen free
yes
Depth
91 mm
Shape
Square
Surface protection
Untreated
Equipped with
Screwed terminal
Rated insulation voltage Ui
690 V
Length
180 mm
Sealable
yes
Circuit integrity
None
Operating temperature
40 °C
Material
Plastic
Number of inlets
12
Cover attachment
Screwed
Max. conductor cross section
16 mm²
With screening
no
Weatherproof
no
Degree of protection
IP65 (Ip: IP65)
Inlet from the rear
yes
For Ex-zone gas
None
Type of housing feed-through
Preembossing
For Ex-Zone dust
None
Cover model
Other
Castable
yes
With casting compound
no
Transparent cover
no
Mounting in the soil
no
Mounting under water
no
