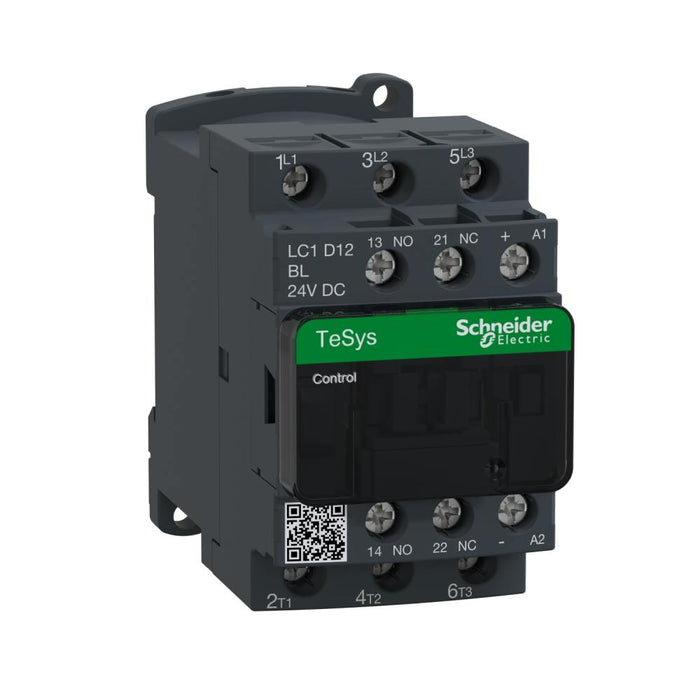

Tesys Contactor 3P 5.5kW 12A 24VDC 1N/O 1N/C LC
Telemecanique

Tesys Contactor 3P 5.5kW 12A 24VDC 1N/O 1N/C LC

Ideal part number TELLC1D12BL Manufacturer number LC1D12BL Barcode 3389110361469
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 24 V DC coil

TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
