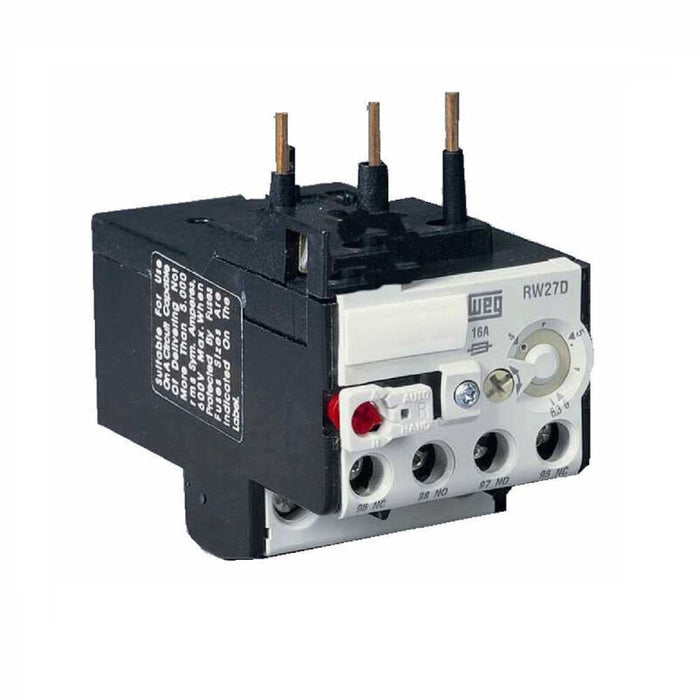

Overload Relay 1.8-2.8A for CWM 9-38
by Weg
Ideal Part Number WEGRW272D3D028
Manufacturer Number RW27-2D3-D028
Barcode 7909018607429
Product Details
Thermal Overload Relay 1.8-2.8A suits CWM 9-38 Class 10
The RW overload relays protect loads against overheating caused by overloads or phase loss. When we have an overload or a phase loss in the circuit, the motor current increases. Such current rise activates the tripping mechanism that will actuate on the auxiliary contacts 95-96 (NC) and 97-98 (NO). The auxiliary contacts disconnect the load by means of a contator. The time for disconnection is related to the overload current and the current set on the relay, which is properly represented on the relay tripping curve. After the trip, it is necessary to wait for the system to reestablish in order to do the reset, which can be done automatic or manually.
The RW overload relays protect loads against overheating caused by overloads or phase loss. When we have an overload or a phase loss in the circuit, the motor current increases. Such current rise activates the tripping mechanism that will actuate on the auxiliary contacts 95-96 (NC) and 97-98 (NO). The auxiliary contacts disconnect the load by means of a contator. The time for disconnection is related to the overload current and the current set on the relay, which is properly represented on the relay tripping curve. After the trip, it is necessary to wait for the system to reestablish in order to do the reset, which can be done automatic or manually.
