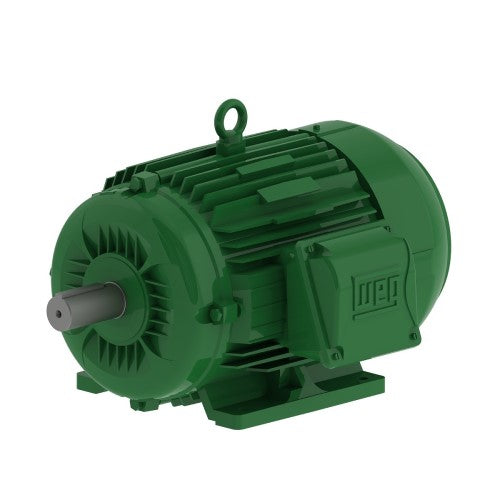

W22 Motor 1.1kW 3Ph 4P Foot & A Flange 90S IP66 B35
Weg

W22 Motor 1.1kW 3Ph 4P Foot & A Flange 90S IP66 B35

Ideal part number WEGW4000110B35 Manufacturer number W4000110B35
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

W22 Motor 1.1kW 3Ph 4 Pole 1500 rpm Foot & A Flange 90S IP66 B35

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Technical specifications

Model
W22
Number of phases
3
Number of poles
4
Rated rotational speed at rated frequency
1500 Rpm
Rated performance at rated frequency
1 kW
Degree of protection
IP66 (Ip: IP66)
Frame size according to IEC
90
Cooling method
TEFC
