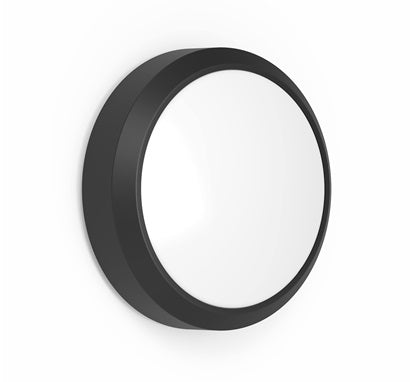

Bulkhead LED Round 300mm Multi-Watt 3CCT Black IP66
Zebra

Bulkhead LED Round 300mm Multi-Watt 3CCT Black IP66

Ideal part number ZEBBLK003 Manufacturer number BLK003
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Bulkhead LED Round 300mm 3CCT 3000K,4000K,6500K Multi-Watt power selectable 10watt/12watt/14.6watt/16.7watt Black IP66. IK10.

The Zebra range of bulkheads is suited to a range of situations, from residential to commercial, hospitality to schools. Rated IP66 and antivandal rated IK10. Control the output lumens, wattage and colour with 4x selectable wattage settings, 3x colour selection.

Technical specifications

Protection class
II
Outer diameter
308 mm
Housing colour
Black
Voltage type
AC
Colour rendering index CRI
80
Suitable for wall mounting
yes
Height/depth
69.5 mm
Housing material
PC (Polycarbonate)
Lamp type
LED
Material cover
PC (Polycarbonate)
Impact strength
IK10
Nominal voltage
220-240
Degree of protection
IP66 (Ip: IP66)
With light source
yes
With control gear
yes
Suitable for surface mounting
yes
Beam angle
120
Colour of light
White
Colour of light adjustable
Y
Suitable for ceiling mounting
yes
Power factor
0.9
